PADEL COURTS

CS-001
WPT Padel Court

Padel court dimensions: 20*10 meters

  • Tempered Glass: Impact resistance,shotbag impact.good fragmentation state.
  • Thickness: 12 mm.
  • Size: 1996*3000 mm per piece. Comply with EN 12150 standard CE marked and Chinese 3C .Total 18 pieces per set.
  • Premium quality hot galvanized steel construction. 100*100*3 mm Q235 steel iron poles, premium aesthetic padel court
  • Top horizontal tube: 155*40 mm
  • Bottom horizontal tube: 133*40mm
  • Fence: 1*2 m,frame 50*30*2 mm
  • All finished by hot dip galvanized
  • Professional Padel court turf:12 mm pile height UV resistance Artificial Lawn that resist the effects of ice and ultraviolet lights and which is durable over time.
  • LED Lighting: 4 units of 200W LED lights. IP66 waterproof.
  • Light column size: 50*50*3 mm
  • Robotic welding
  • World Wide Shipping

CS-002
Classic Padel Court

Padel court dimensions: 20*10 meters

  • Tempered Glass: Impact resistance,shotbag impact.good fragmentation state.
  • Thickness: 12 mm.
  • Size: 2000*3000 mm per piece. Comply with EN 12150 standard CE marked and Chinese 3C .Total 18 pieces per set.
  • Premium quality hot galvanized steel construction. 100*100*3 mm Q235 steel iron poles, premium aesthetic padel court
  • Top horizontal tube: 100*50*3 mm, length 4m/5m
  • Bottom horizontal tube: 100*50*3 mm, length 4m/5m
  • Fence: 1*2 m,frame 50*30*2 mm, mesh ¢4.0mm
  • All finished by hot dip galvanized
  • Professional Padel court turf:12 mm pile height UV resistance Artificial Lawn that resist the effects of ice and ultraviolet lights and which is durable over time.
  • LED Lighting:8 units of 200W LED lights. IP65 waterproof.
  • Light column size: 100*50*3 mm
  • Robotic welding
  • World Wide Shipping

CS-003
Super Panoramic View

Padel court dimensions: 20*10 meters

  • Tempered Glass: Impact resistance,shotbag impact.good fragmentation state.
  • Thickness: 12 mm.
  • Size: 2000*3000 mm per piece. Comply with EN 12150 standard CE marked and Chinese 3C .Total 18 pieces per set.
  • Premium quality hot galvanized steel construction. 100*100*3 mm Q235 steel iron poles, premium aesthetic padel court
  • Top horizontal tube: 100*50*3 mm, length 4m/5m
  • Bottom horizontal tube: 100*50*3 mm, length 4m/5m
  • Fence: 1*2 m,frame 50*30*2 mm, mesh ¢4.0mm
  • All finished by hot dip galvanized
  • Professional Padel court turf:12 mm pile height UV resistance Artificial Lawn that resist the effects of ice and ultraviolet lights and which is durable over time.
  • LED Lighting:8 units of 200W LED lights. IP65 waterproof.
  • Light column size: 100*50*3 mm
  • Robotic welding
  • World Wide Shipping

CS-004

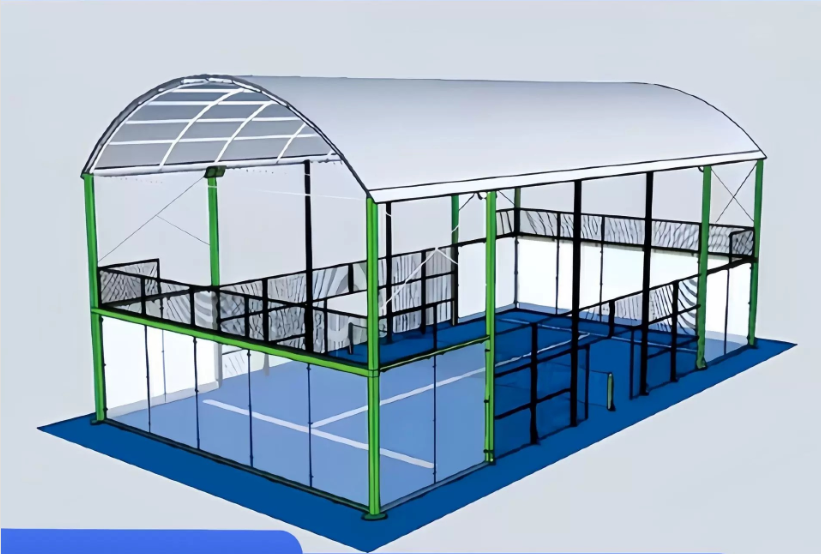

Padel court with roof

Padel court dimensions: 20*10 meters

  • Tempered Glass: Impact resistance,shotbag impact.good fragmentation state.
  • Thickness: 12 mm.
  • Size: 2000*3000 mm per piece. Comply with EN 12150 standard CE marked and Chinese 3C .Total 18 pieces per set.
  • Premium quality hot galvanized steel construction. 100*100*3 mm Q235 steel iron poles, premium aesthetic padel court
  • Top horizontal tube: 100*50*3 mm, length 4m/5m
  • Bottom horizontal tube: 100*50*3 mm, length 4m/5m
  • Fence: 1*2 m,frame 50*30*2 mm, mesh ¢4.0mm
  • All finished by hot dip galvanized
  • Professional Padel court turf:12 mm pile height UV resistance Artificial Lawn that resist the effects of ice and ultraviolet lights and which is durable over time.
  • LED Lighting:8 units of 200W LED lights. IP65 waterproof.
  • Light column size: 100*50*3 mm
  • Robotic welding
  • World Wide Shipping

PADEL COURTS PROJECTS
